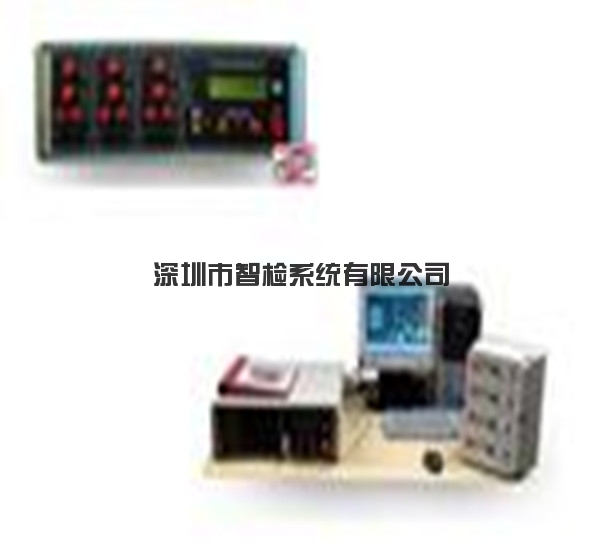

Flexible Tester - Model 7280 Technical specifications Appliances incorporating a swivel connections are positioned with their major axis horizontal, the supply cord hanging vertical A pull force of 1 N is applied to the supply cord Appliance is supplied at rated voltage Current being 1,25 times the rated current Appliance is rotated about its major axis at a rate of app. 50 rev/min Direction of rotation being reversed every 20 rev. = 1 cycle Test is carried out for 1 500 rev. = 75 cycles PLC system controlling motor rotation, counts of revolutions cycles, including a temperature display Supply for EUT 230 VAC, 50/60 Hz, 6 A
|
