瑞典FRIBORG 试验手指和探头
IEC standard 61032 is the main standard for most of the fingers test
probes. This standard shows the collection of probes. The different product
standards refer to this standard. Some probes are also described in IEC
60529.
A dynamometer can be used to apply the probe finger with correct force.
The probe is mounted onto the dynamometer with an adapter.
Finger probes according to IEC 61032:
Name Description Article number
Test probe A 50 mm sphere with handle
Test probe B Jointed finger

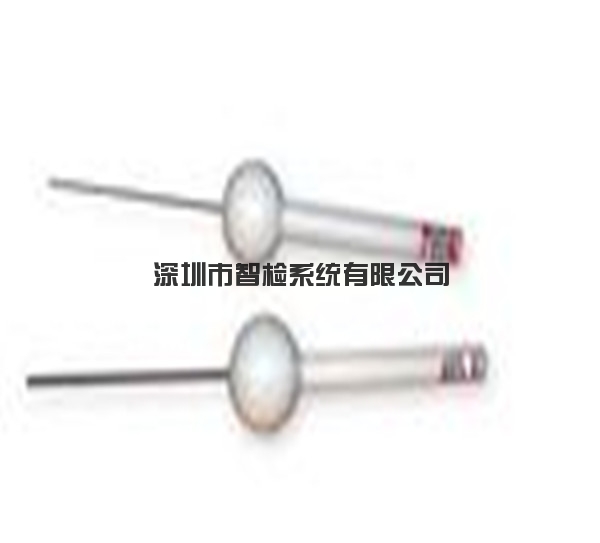

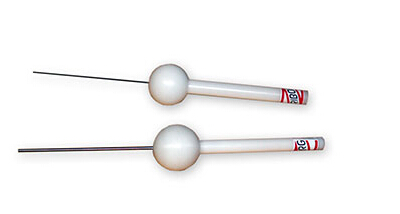

Test probe C 2,5 mm rod with ball handle
Test probe D 1 mm rod with ball handle
Test probe 1 50 mm sphere
Test probe 2 12,5 mm sphere /
Test probe 11 Rigid finger
Test probe 12 4 mm rod with handle
Test probe 13 3-4 mm rod with handle
Test probe 14 3x1 mm bar
Test probe 17 0,5 mm wire
Test probe 18 8,6 mm jointed finger
Test probe 19 5,6 mm jointed finger
Other popular probes:
Standard Description Article number
IEC 60950 Clause 2.1.1.1, fig 2C, Rigid finger
IEC 60065 Clause 9.1.4, Modified probe D
IEC 60065 Fig 4, Test hook
IEC 60335-1 Clause 20.2, Modified probe B
IEC 60335-1 Clause 21.2 22.11, Fingernail
IEC 60335-2-64 Clause 20.2, Modified probe B
IEC 62368-1 Jointed version of Fig V.
IEC 62368-1 Rigid version of Fig V.
UL standards Jointed finger /
- Rigid version of Test probe B
Accessories for probes:
Standard Description Article number
IEC 60529 Clause 12.2 Terminal sensor
Analogue dynamometer for probes:
Description Article number
1-10 Newton
2,5-25 Newton
5-50 Newton
10-100 Newton
Adapter dynamometer-probe 60-00187B
